380bhp Modified Ford Escort Cosworth: The Ultimate Track Weapon?

380bhp Ford Escort Cosworth: A Motorsport-Inspired Build

When it comes to legendary performance cars with immense tuning potential, few can match the rally-bred Ford Escort Cosworth. With its motorsport heritage and nearly limitless modification capabilities, this iconic vehicle continues to command respect within the UK modified car community decades after its production ended. We explore one enthusiast's remarkable journey in creating what can only be described as a true track weapon.

Mark Eltringham's Cosworth Passion

Mark Eltringham's fascination with the Escort Cosworth began at the influential age of 16 when he first spotted a Mallard Green example in his local dealership. "I instantly fell in love and knew this was the car for me!" he recalls. Like many aspiring Cossie owners of that era, insurance premiums and purchase costs initially put this dream car out of reach.

Mark's automotive journey began more modestly with a Mk4 Escort Eclipse before progressing through various performance vehicles including Renault 5 GT Turbos, Mazda RX-7s, and a Mitsubishi Evo. Despite this diverse experience, Ford's Cosworth lineage remained a constant presence - Mark owned and modified no fewer than four Sierra Sapphire Cosworths during this period. "I can't deny they were all amazing cars," he says, "but I still had that hankering to find myself an Escort Cosworth."

Finding the Perfect Project Car

With Escort Cosworth values rising sharply in recent years, finding an affordable, pristine example proved challenging. Mark recognised his budget would likely only stretch to a project car requiring significant work. His breakthrough came when he spotted an online advertisement for a Diamond White 1997 Escort Cosworth on social media with an inviting price tag - although production had actually ended in early 1996.

"It turned out the description was wrong, and the car was actually built in 1993," Mark explains. Despite this initial discrepancy, he decided to investigate further. The car had lived an eventful life, having been built from a genuine Ford Motorsport lightweight shell for rallying in Europe by AMP Motorsport in Belgium. Originally left-hand drive, it had been imported to the UK where it was campaigned in circuit racing and converted to right-hand drive and rear-wheel drive.

"Essentially, all this information only confirmed it had been used and abused pretty much all its life," Mark laughs. The car had spent its last two years stationary in a bodyshop, presenting the perfect opportunity for a comprehensive rebuild.

The Build Plan Takes Shape

Recognising that another opportunity to purchase an affordable Escort Cosworth was unlikely to arise soon, Mark took the plunge. His initial plan to fix existing issues and enjoy the car temporarily was quickly abandoned in favour of a full winter rebuild. The abused Cosworth was stripped back to a rolling shell, allowing Mark to compile a comprehensive parts list.

"I considered converting the drivetrain back to 4WD," he says, "but as I'd just sold a 4x4 Sapphire I decided to stick with the existing 2WD setup - RWD is always more fun anyway!" This decision would define the character of the finished vehicle.

Transforming the Exterior

With the car effectively being a blank canvas, Mark had creative freedom to pursue a completely different aesthetic. The fully strengthened and seam-welded Motorsport shell was prepped for painting, though finding a bodyshop willing to paint a rolling shell proved initially challenging.

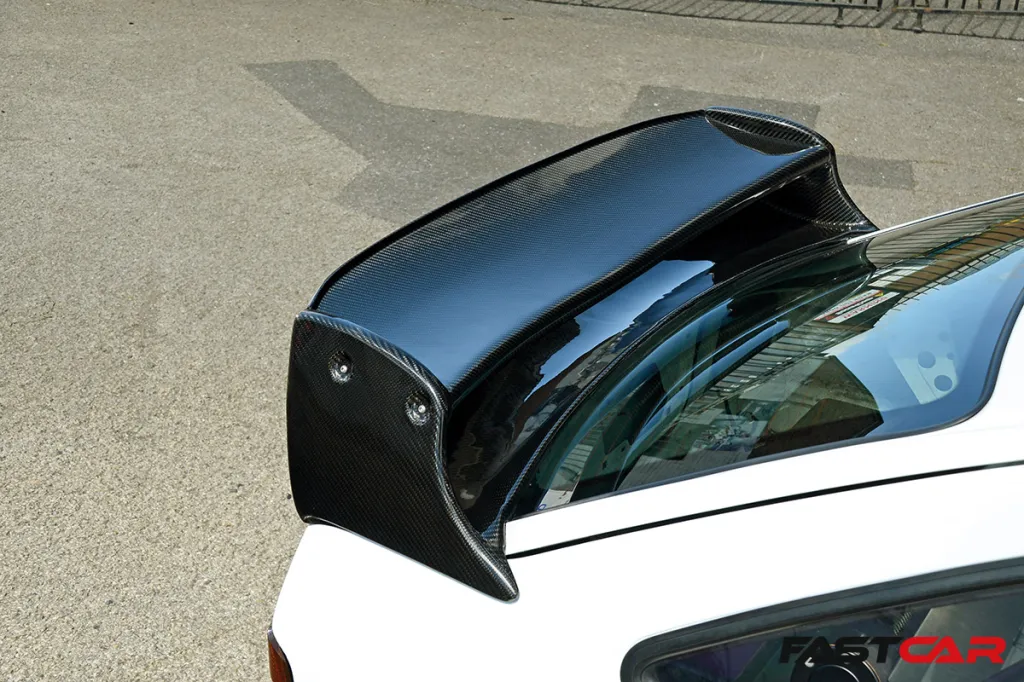

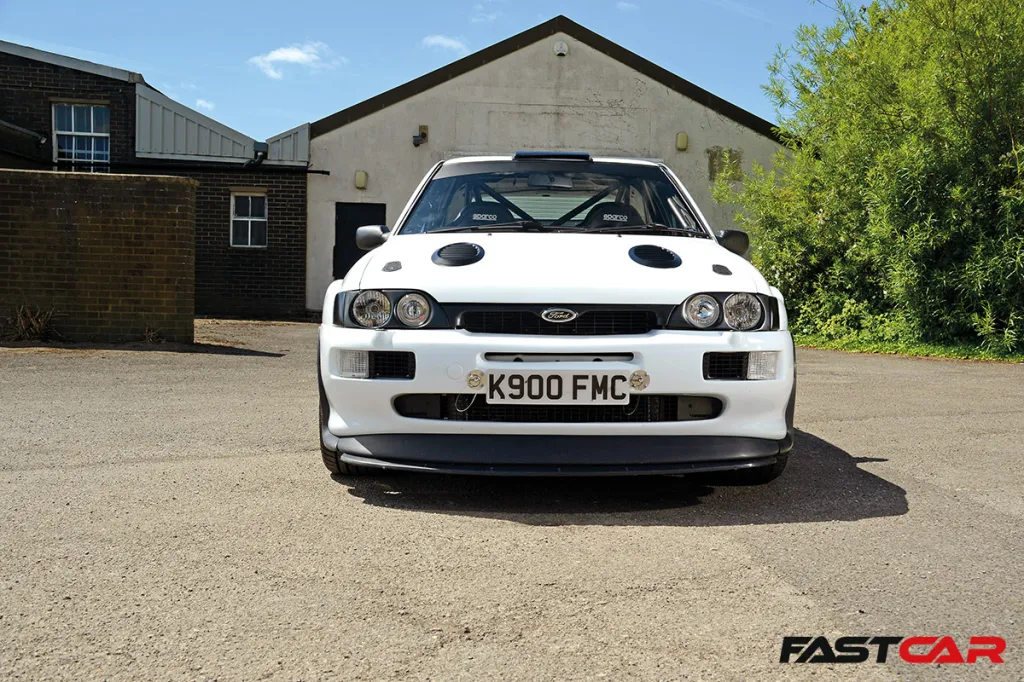

The result was a dramatic colour change from the original Diamond White to the more vivid Frozen White seen on later-generation Focus RS models. "I reckon Frozen White makes the car pop and stand out from the crowd," Mark explains. Weight reduction played a key role in the transformation, with carbon-Kevlar WRC wings and a carbon WRC spopper replacing original panels. The addition of a Morette twin headlight conversion and Compomotive MO6 18" wheels completed the aggressive new look.

Handling and Suspension Upgrades

The car arrived with an adjustable AVO tarmac suspension setup from its motorsport days, but Mark found the ride uncomfortably hard even on the softest settings. After investigation, he opted for GAZ GHA suspension, which maintained the car's handling capabilities while delivering a more tolerable ride quality for road use.

Tuning the Legendary YB Engine

The heart of any Escort Cosworth is its YB engine, and Mark's example received comprehensive attention. A full rebuild of both head and bottom end incorporated pocketed pistons, BD10 cams, a Group A head gasket, Bosch 550cc injectors, vernier pulleys and a high-pressure oil pump. The combination of these upgrades with a Garrett T34.63 turbo running 27psi of boost, mapped by Cosworth specialists NMS, results in a formidable 380bhp output.

"I went for Link MonsoonX engine management with an onboard Windows 10 PC linked to the ECU with a 7" touchscreen," Mark explains. "This ensures I can keep an eye on how the car is performing and make any changes as necessary." A new uprated engine loom and custom vehicle wiring loom were installed, complemented by a Premier Fuel System carbon bag tank with twin Bosch 200 pumps to ensure adequate fuelling.

Completing the Package

With significantly increased power being directed to the rear wheels, the T5 gearbox received hardened internals and an Alcon 6-paddle clutch. Braking performance was enhanced with Compbrake 6-pot calipers and 330mm rotors at the front, while 4x4 calipers with 300mm vented discs improved stopping power at the rear.

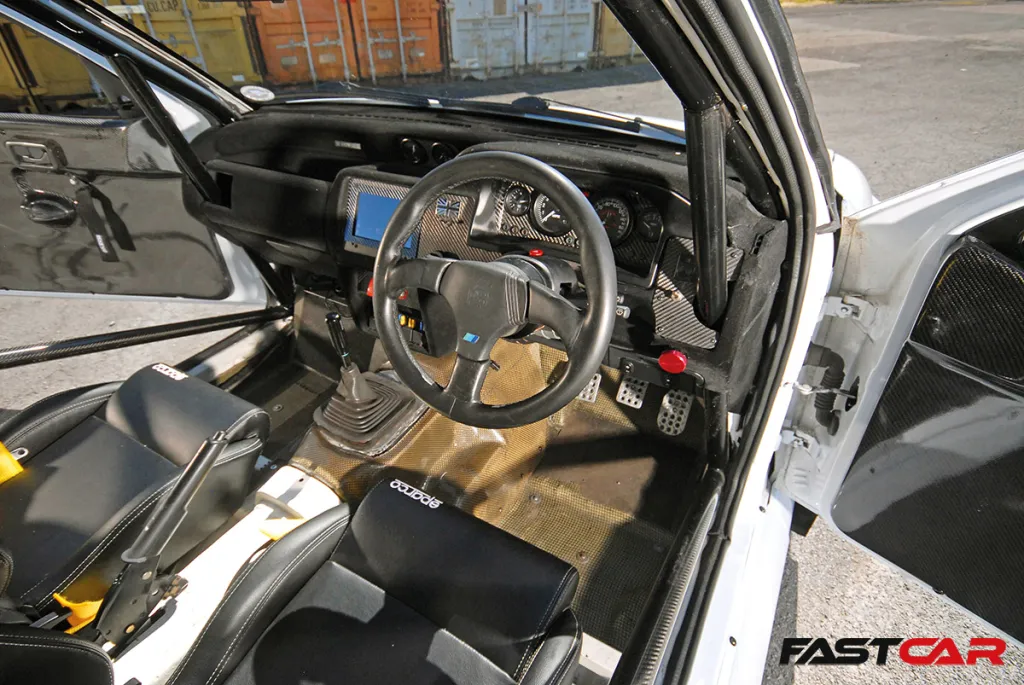

The welded-in multi-point rollcage from the car's competition days was retained, despite presenting challenges during repainting and dashboard installation. The cabin maintains its motorsport theme with carbon doorcards, Sparco seats, Stack gauges and a GPS speedometer, though Mark notes the flocked dash can be challenging to keep clean.

The Finished Article

"There were a few issues to sort and numerous setbacks throughout the build, but it was all worthwhile as the reactions I've had so far have been highly positive," Mark reflects. "I guess people are used to seeing pound signs and consequently returning their cars to standard spec, so this is something different."

Despite the challenges encountered, Mark hasn't been deterred from future projects - he's already working on a Mk2 Fiesta XR2 with full Subaru Impreza running gear and considering a Mk1 Focus RS build. "I reckon the Focus would complement my other cars really well," he ponders, "especially if I ever fancy a slightly less harsh ride - the Escort can sometimes feel a bit like you're inside a tin can with someone throwing stones at you!"

Verdict: A Modern Classic Reborn

This 380bhp RWD Escort Cosworth represents a passionate tribute to an era when turbocharged performance cars dominated British roads. In an age where manufacturers focus increasingly on electric SUVs, builds like Mark's serve as a timely reminder of the raw, mechanical excitement that defined performance motoring in the 1990s. For enthusiasts wondering whether classic performance cars still have relevance in the modern era, this exceptional Escort Cosworth provides a resounding answer.
